Optimizer Comparison: Small Batch Training for Language Models

A systematic comparison of optimizer implementations for LLM pre-training, with a focus on small-batch regimes. We test 10 optimizer configurations across three training modes (AMP, pure bfloat16, and gradient accumulation) using a 30M-parameter Llama model on the FineWeb-Edu dataset.

Motivation

Recent work by Marek et al. ("Small Batch Size Training for Language Models: When Vanilla SGD Works, and Why Gradient Accumulation Is Wasteful") challenges the assumption that adaptive optimizers are essential for language model training. Their key claims:

1. With proper hyperparameter scaling, vanilla SGD can train language models stably even at batch size 1.
2. Small batches offer equal or better per-FLOP performance than larger batches.
3. Gradient accumulation is wasteful -- it merely simulates a larger batch without the throughput benefits of actual parallelism.
4. The critical insight for scaling Adam across batch sizes is to hold beta2's half-life fixed in terms of tokens rather than steps.

Our experiments test these claims empirically across a range of optimizer families: Adam variants, Adafactor, Apollo, Muon, SinkGD, and SGD.

Experimental Setup

All experiments share the following configuration:

Parameter	Value
Model	Llama (30.3M params): hidden=512, layers=10, heads=8, KV heads=2, vocab=4000, untied embeddings
Dataset	HuggingFaceTB/smollm-corpus (FineWeb-Edu subset), packed, ~560M tokens
Sequence length	512
Batch size	32 sequences/device (16,384 tokens/step)
LR schedule	Cosine annealing with 10% linear warmup
LR scaling	lr = base_lr * sqrt(tokens_per_step / 16384)
beta2 scaling	scaled_beta2 = 0.999 ^ (tokens_per_step / 16384) (per Marek et al.)
Precision	AMP (bf16 compute, fp32 weights) unless noted
Compilation	torch.compile enabled
Hardware	Single NVIDIA RTX 4090 per run
Total steps	35,968 (batch=32) or 4,496 (grad accumulation 8x)

The beta2 scaling follows Marek et al.'s recommendation: maintaining a constant half-life in tokens ensures the second moment estimate decays at the same rate regardless of batch size.

---

Optimizers Tested

Adaptive (full state): - AdamW (torch.optim.AdamW): The baseline control. Fused implementation, with scaled beta2. - FG Adam (forgather.ml.optim.AdamW): Forgather's Adam implementation with stochastic rounding support for bf16 training. - Adafactor (forgather.ml.optim.adafactor.Adafactor, torch.optim.Adafactor, transformers.Adafactor): Factored second-moment estimation. Stores row and column factors instead of the full second-moment matrix, reducing memory.

Low-rank adaptive: - Apollo (arXiv:2412.05270): Approximates AdamW's per-channel scaling via low-rank random projections. Projects gradients into a rank-128 subspace, computes moments there, derives a per-channel scaling factor. Memory cost approaches SGD. Uses a multiopt setup routing embeddings/norms/biases to Adam and all weight matrices to Apollo. - Apollo PCA: Apollo variant using an OnlinePCAProjector (updated every 10 steps) instead of random projections. Captures the actual principal gradient directions rather than random ones.

Matrix-orthogonalization: - Muon (arXiv:2502.16982): MomentUm Orthogonalized by Newton-schulz. Runs Nesterov SGD (beta=0.95), then projects each 2D weight matrix's update onto the Stiefel manifold via 5 Newton-Schulz iterations. The adjust_lr_fn="match_rms_adamw" scaling allows direct reuse of AdamW-scale learning rates. Only stores one momentum buffer (50% less optimizer state than AdamW). Applied only to 2D weight matrices; embeddings/norms/biases use AdamW. Recently adopted in production by Kimi K2, GLM-4.5, and INTELLECT-3; now in PyTorch core (torch.optim.Muon).

Gradient normalization: - SinkGD (arXiv:2502.06742): Sinkhorn Gradient Descent. Alternates row-wise and column-wise L2 normalization of gradient matrices (5 iterations), recovering the square-root Sinkhorn algorithm. Completely stateless -- zero optimizer buffers, same memory as vanilla SGD. Scaled by alpha * lr where alpha=0.05. Applied only to 2D weight matrices; embeddings/norms/biases use Adam.

SGD variants: - SGD (forgather.ml.optim.SGD): Vanilla SGD, no momentum. Base LR=1.0. - Nesterov SGD (torch.optim.SGD): Nesterov momentum (beta=0.9), fused implementation. Base LR=0.1.

---

Results

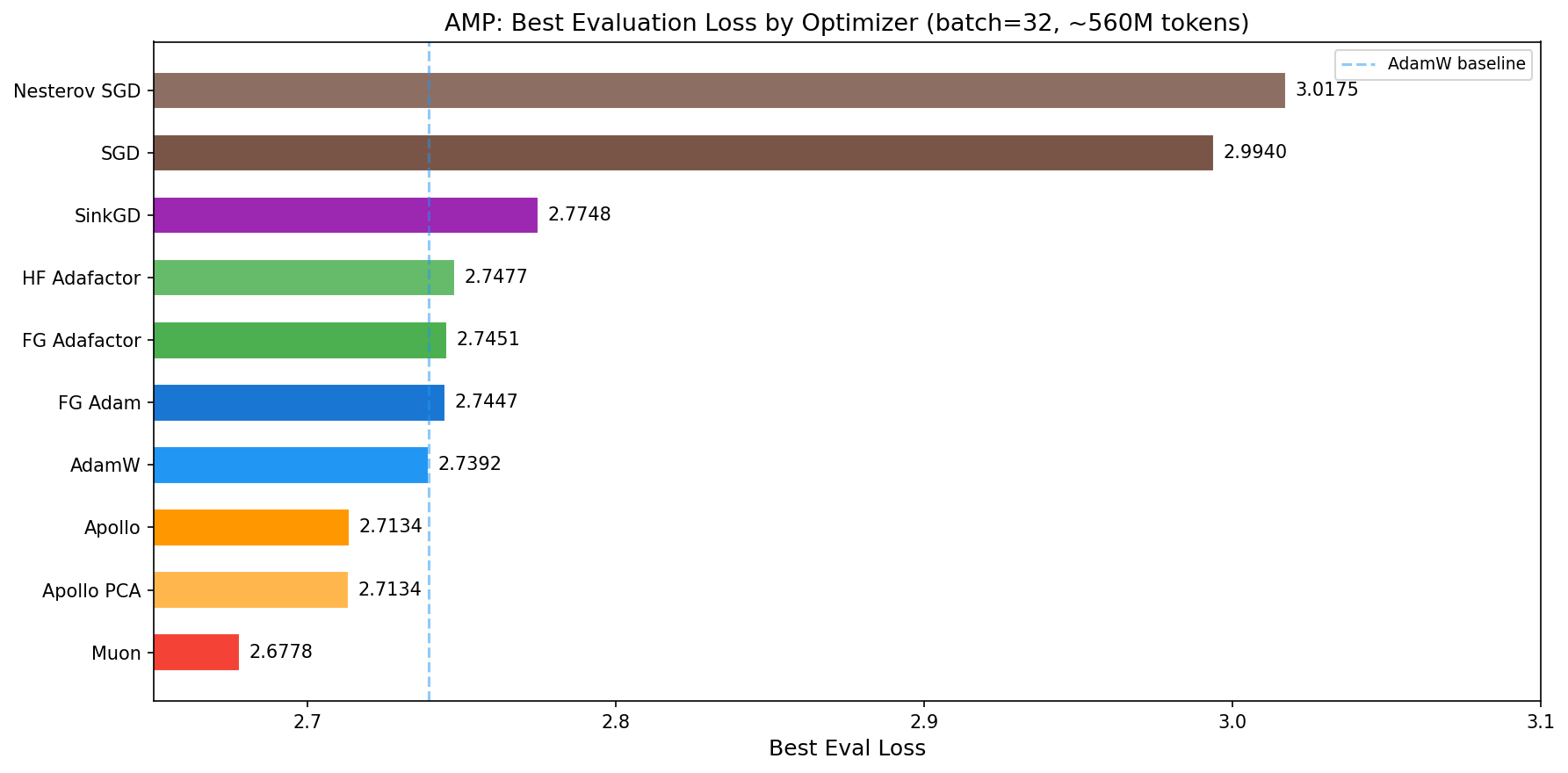

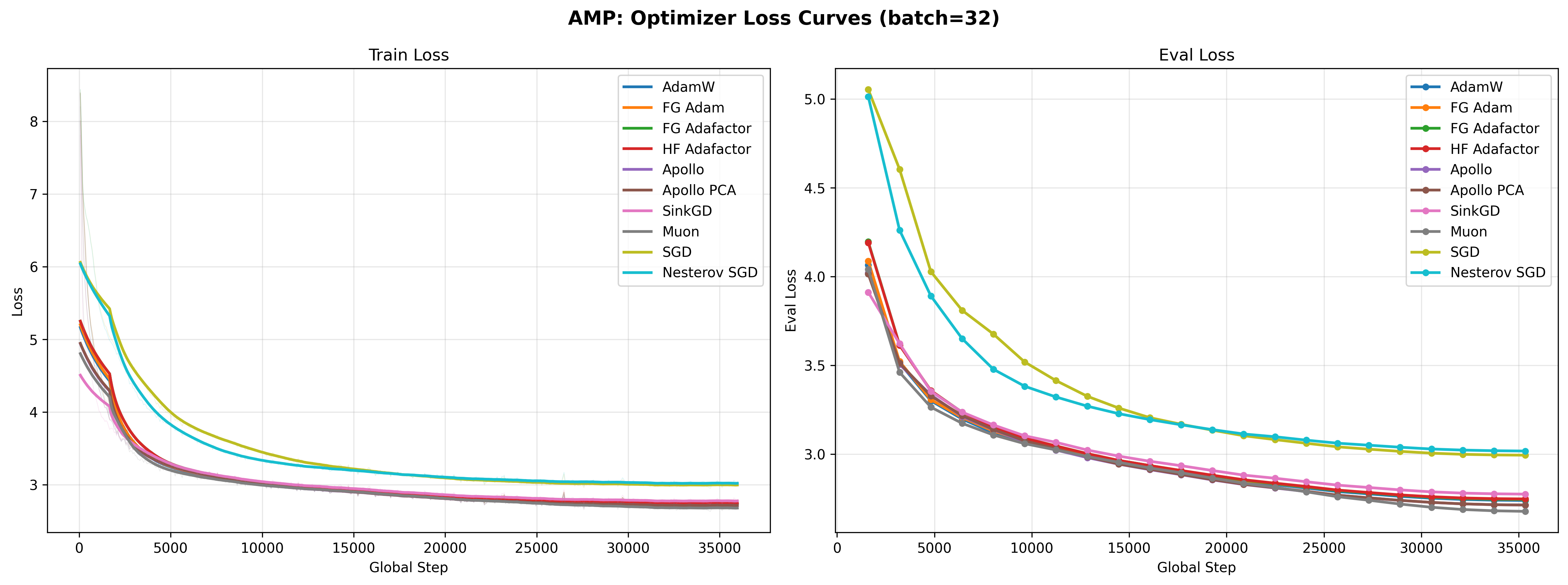

1. AMP: Mixed-Precision Training (batch=32)

The primary experiment group. All optimizers use bf16 autocast with fp32 master weights.

Optimizer	Best Eval Loss	Train Loss	Peak Mem	Throughput	Time
Muon	2.6778	2.7020	3.82 GB	208K tok/s	47.8 min
Apollo PCA	2.7134	2.7382	3.79 GB	194K tok/s	50.9 min
Apollo	2.7134	2.7391	3.78 GB	189K tok/s	52.4 min
AdamW	2.7392	2.7654	3.92 GB	267K tok/s	37.4 min
FG Adam	2.7447	2.7699	3.92 GB	270K tok/s	37.1 min
FG Adafactor	2.7451	2.7702	3.69 GB	268K tok/s	37.4 min
HF Adafactor	2.7477	2.7728	3.69 GB	221K tok/s	45.1 min
SinkGD	2.7748	2.8003	3.72 GB	194K tok/s	51.1 min
SGD	2.9940	3.0165	3.69 GB	275K tok/s	36.4 min
Nesterov SGD	3.0175	3.0420	3.80 GB	275K tok/s	36.5 min

Key observations:

Muon wins at small batch size. Despite the small 16K token batch, Muon achieves the best eval loss of 2.6778 -- beating AdamW by 0.061 and Apollo by 0.036. This is a strong result: Muon's orthogonalized updates extract more information per gradient step than any other optimizer tested, even in the high-noise small-batch regime. The 28% throughput penalty (208K vs 267K tok/s) is more than compensated by the convergence advantage.

Apollo is second-best. Both Apollo variants achieve 2.7134 eval loss, beating AdamW by 0.026. The OnlinePCA projector variant matches random projections exactly, suggesting rank-128 is sufficient for this model size.

The adaptive optimizer cluster. AdamW, FG Adam, FG Adafactor, and HF Adafactor form a tight cluster between 2.739 and 2.748 -- a spread of only 0.009. At this batch size and model scale, the choice among these standard adaptive optimizers is nearly irrelevant.

SinkGD is competitive but not dominant. At 2.7748, SinkGD trails AdamW by 0.036 despite being completely stateless (zero optimizer memory). Its throughput penalty (~30% slower than AdamW) comes from the iterative normalization, but its memory savings are real: identical footprint to SGD.

SGD underperforms but trains. Both SGD variants converge to eval losses around 3.0 -- roughly 0.26 worse than AdamW. This confirms Marek et al.'s claim that SGD can train language models, but the gap to adaptive methods remains substantial at this scale. Interestingly, Nesterov momentum provides almost no benefit over vanilla SGD (3.0175 vs 2.9940 -- Nesterov is slightly worse), suggesting that at small batch sizes the momentum signal is too noisy to help.

---

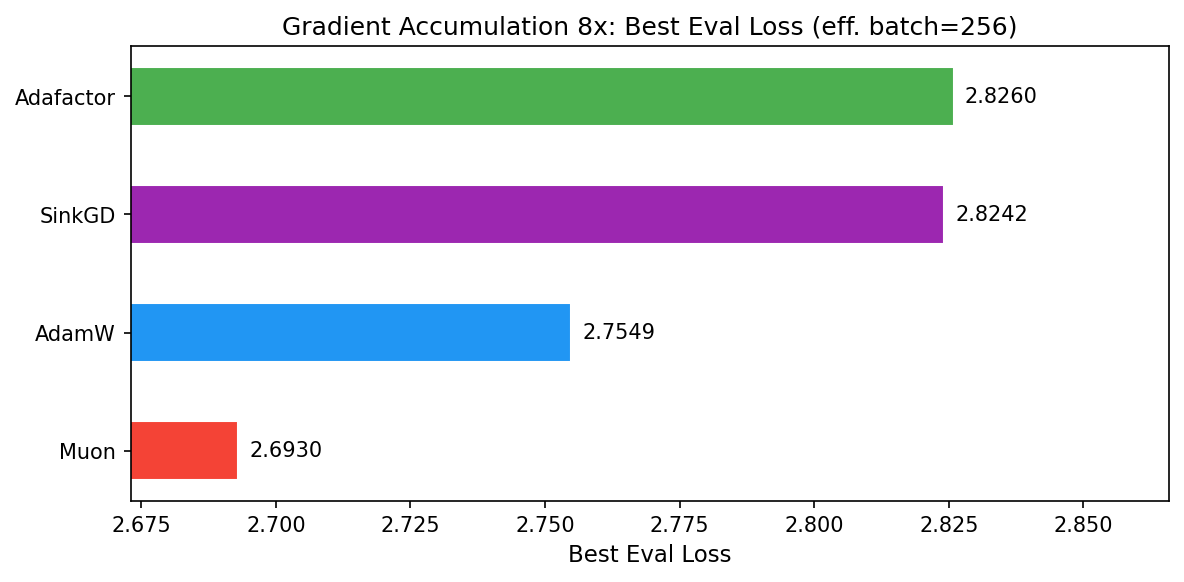

2. Gradient Accumulation 8x (effective batch=256)

These runs use 8x gradient accumulation, increasing the effective batch from 16K to 131K tokens per optimization step. This reduces total steps from ~36K to ~4.5K for the same data.

Optimizer	Best Eval Loss	Train Loss	Peak Mem	Time
Muon	2.6930	2.7183	3.96 GB	37.9 min
AdamW	2.7549	2.7810	4.06 GB	38.2 min
SinkGD	2.8242	2.8502	3.86 GB	40.1 min
Adafactor	2.8260	2.8491	3.83 GB	36.8 min

Muon excels at larger batch sizes. Muon leads the grad8 group by 0.062 over AdamW (2.6930 vs 2.7549). This aligns with published results: Muon's gradient orthogonalization produces higher-quality updates that scale efficiently with batch size, retaining data efficiency far beyond the critical batch size.

Gradient accumulation is a tradeoff, not free. Comparing across batch sizes (AdamW: 2.7392 at batch=32 vs 2.7549 at batch=256), the larger batch achieves slightly worse eval loss despite seeing the same total tokens. The 8x fewer optimization steps mean fewer chances for the model to update. This is consistent with Marek et al.'s argument that gradient accumulation is often wasteful -- it reduces update frequency without improving gradient quality enough to compensate.

The gap between optimizers widens. At batch=32, AdamW beats Adafactor by only 0.006. At batch=256, the gap grows to 0.071. Larger batches appear to amplify optimizer differences, as each update carries more weight.

---

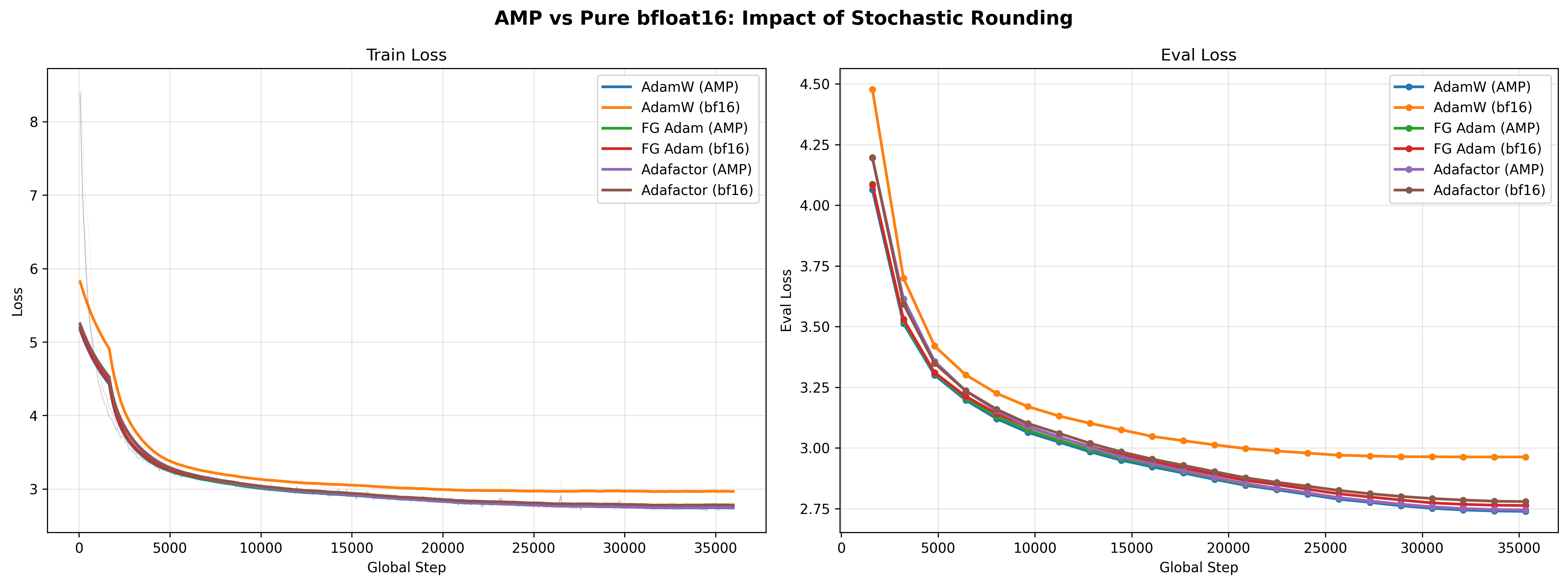

3. Pure bfloat16: Stochastic Rounding

These experiments compare AMP training (bf16 compute with fp32 master weights) against pure bf16 training (bf16 weights throughout). The Forgather optimizer implementations (forgather.ml.optim) support stochastic rounding, which compensates for bf16's limited mantissa precision during weight updates.

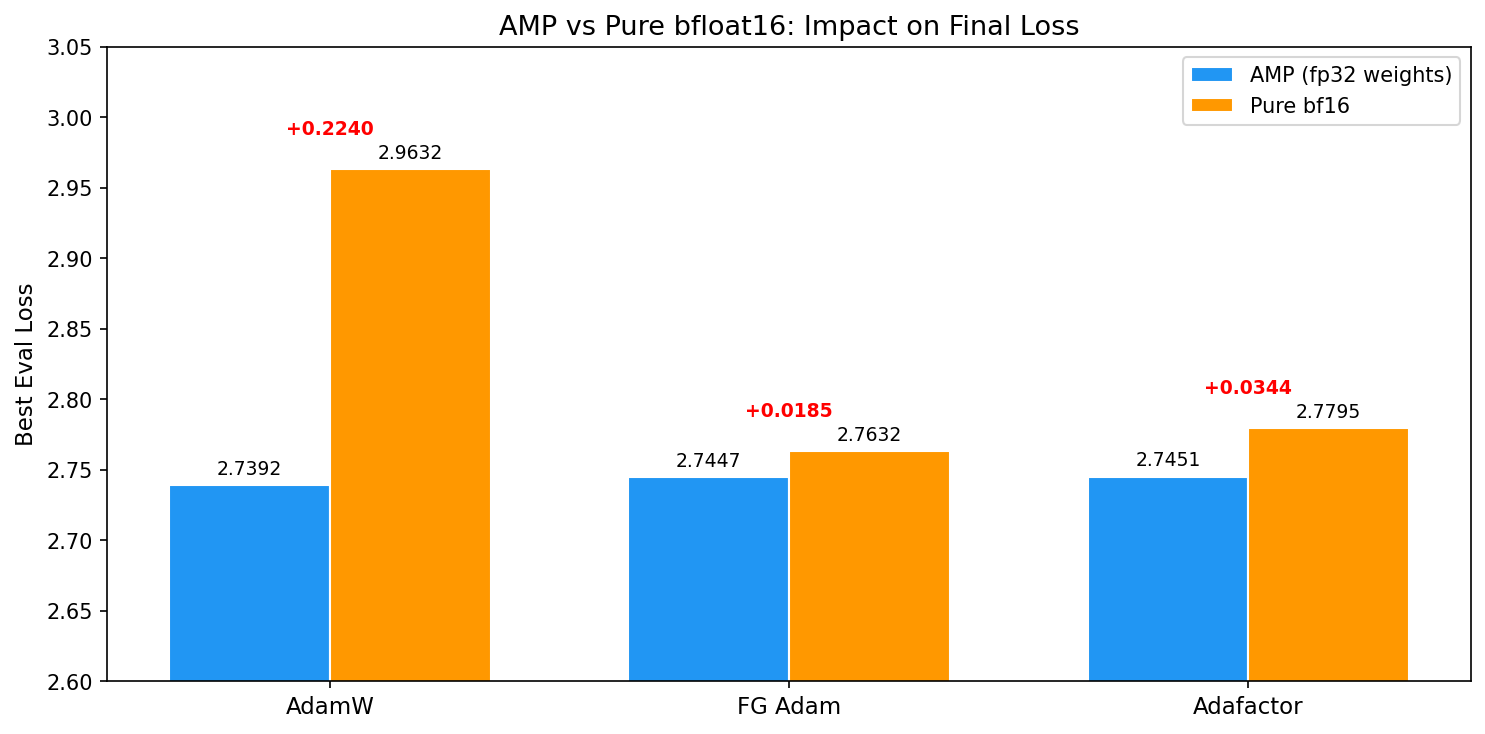

Optimizer	AMP Eval	bf16 Eval	Delta	bf16 Savings
AdamW (torch)	2.7392	2.9632	+0.2240	0.79 GB
FG Adam (stochastic rounding)	2.7447	2.7632	+0.0185	0.79 GB
Adafactor (stochastic rounding)	2.7451	2.7795	+0.0344	0.67 GB

Stochastic rounding is critical for bf16 training. Torch's AdamW without stochastic rounding suffers a catastrophic 0.224 loss degradation in pure bf16 mode, rendering it nearly as bad as SGD. The FG Adam implementation with stochastic rounding reduces this to just 0.019 -- a 12x improvement. Adafactor with stochastic rounding shows a moderate 0.034 degradation.

Why it matters: Pure bf16 training saves ~0.7-0.8 GB of GPU memory (no fp32 weight copy needed) and runs faster (FG Adam bf16: 573K tok/s vs AMP: 518K tok/s, a 10% speedup). With stochastic rounding, the quality cost is minimal.

How stochastic rounding works: In standard bf16 weight updates, small gradient updates are silently truncated to zero due to limited mantissa bits (7 bits, vs 23 in fp32). Stochastic rounding randomly rounds up or down with probability proportional to the truncated portion, ensuring the expected value of the update is correct. Over many steps, the accumulated updates converge to the same result as fp32 arithmetic.

---

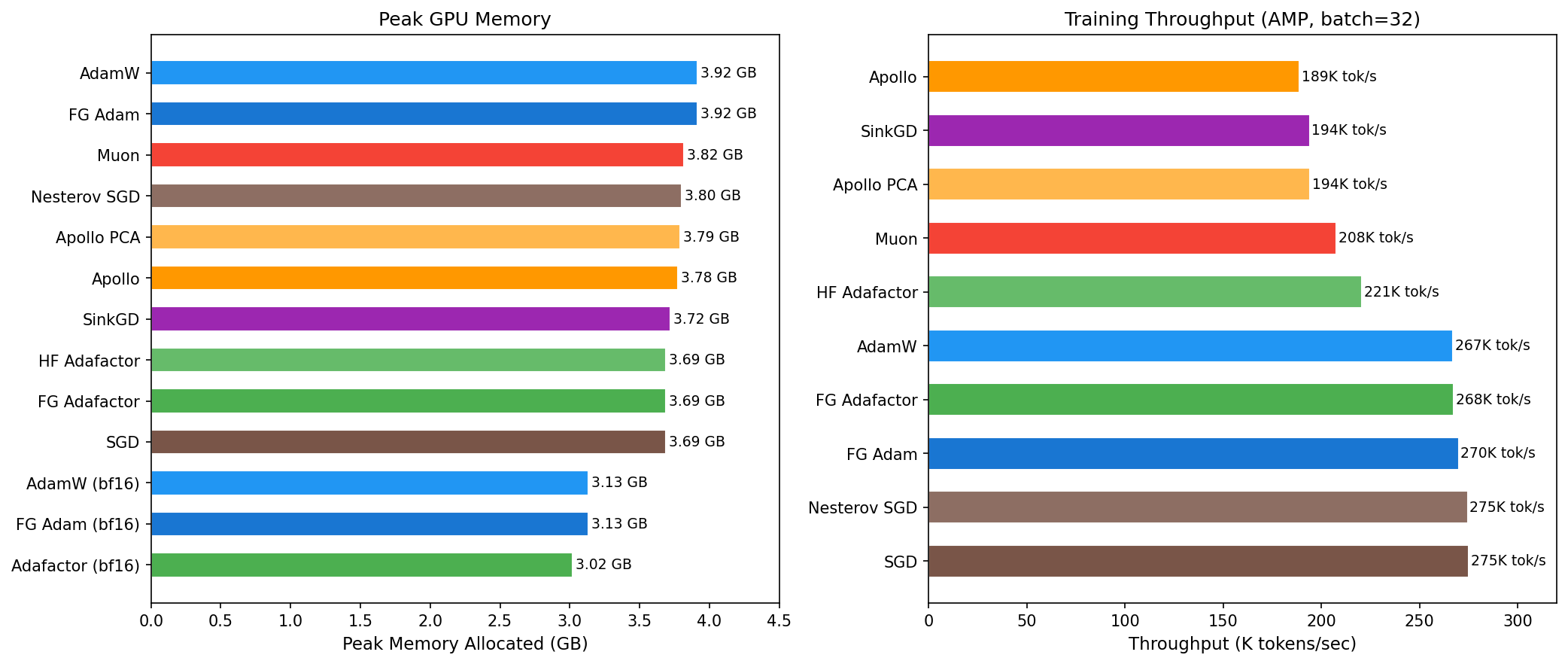

4. Memory and Throughput

Memory tiers:

Tier	Optimizers	Peak Memory	Optimizer State
Full state (AMP)	AdamW, FG Adam	3.92 GB	2 buffers/param (m, v)
Reduced state (AMP)	Muon	3.82 GB	1 buffer/param (momentum)
Factored (AMP)	Adafactor, Apollo, SinkGD, SGD	3.69-3.79 GB	Factored or none
Full state (bf16)	FG Adam bf16	3.13 GB	2 buffers (bf16 weights save ~0.8 GB)
Factored (bf16)	Adafactor bf16	3.02 GB	Factored + bf16 weights

A note on model size: At 30M parameters, optimizer state differences are modest in absolute terms (0.2 GB between AdamW and SGD) because activations and framework overhead dominate. At scale, the picture changes dramatically: for a model with N parameters in fp32, AdamW stores 2N floats of state (m, v), effectively tripling the parameter memory. Muon stores N floats (momentum), doubling it. Apollo stores low-rank approximations, a meaningful but smaller overhead. Adafactor stores only row and column factors -- virtually zero overhead for large matrices. SGD and SinkGD store nothing at all.

For practitioners training large models on limited hardware, these differences determine whether a model fits in memory at all. A 7B-parameter model in bf16 occupies ~14 GB for weights alone; AdamW adds ~28 GB of optimizer state (in fp32), while SinkGD and SGD add zero.

Throughput tiers:

Tier	Optimizers	Throughput	Notes
Fastest	SGD, Nesterov SGD	275K tok/s	Minimal per-step computation
Fast	FG Adam, Adafactor, AdamW	267-270K tok/s	Fused/compiled kernels
Medium	HF Adafactor	221K tok/s	Pure Python implementation
Slow	Apollo, SinkGD, Muon	189-208K tok/s	Matrix operations per step

A note on implementation maturity: The throughput numbers above reflect the current state of each implementation, not the inherent cost of the algorithms. Forgather's AdamW and Adafactor implementations are fairly optimized and support torch.compile, explaining their strong throughput. In contrast, the SinkGD and Apollo implementations used here are experimental and have not been optimized -- their throughput penalties are partly an artifact of implementation rather than algorithmic cost. Muon uses PyTorch's built-in torch.optim.Muon, which is reasonably well-optimized but still involves 5 matrix multiplications per weight matrix per step.

A more optimized SinkGD implementation is under development in the examples/tiny_experiments/sinkgd/ project. Early results there show that a single Sinkhorn iteration produces results nearly identical to 5 iterations; combined with torch.compile and stochastic rounding support, this makes compiled SinkGD competitive in throughput with the fast tier while retaining its zero-state memory advantage.

---

5. Optimizer Deep Dives

Apollo: Low-Rank Gradient Scaling

Apollo (Zhu et al., 2024) approximates Adam's per-channel adaptive scaling using low-rank random projections:

1. Project gradient G into rank-r subspace: R = P @ G (where P is r x m)
2. Maintain moments M, V in the low-rank space
3. Compute scaling: S_j = ||R_tilde[:,j]|| / ||R[:,j]|| where R_tilde = M / (sqrt(V) + eps)
4. Apply channel-wise scaling to the full gradient

With rank=128 (25% of hidden_dim=512) and random projections updated every 200 steps, Apollo achieves the second-best eval loss (2.7134, behind only Muon's 2.6778) while using significantly less optimizer memory than AdamW. The OnlinePCA variant (which tracks actual principal gradient directions, updated every 10 steps) achieves identical results, suggesting that at sufficient rank the projection basis does not matter.

The multiopt routing sends embedding, LM head, norm, and bias parameters to standard Adam, while all weight matrices use Apollo.

Muon: Orthogonalized Momentum

Muon (Jordan, 2024; scaled in Moonshot AI, 2025) replaces Adam's element-wise adaptivity with a global matrix operation:

1. Compute Nesterov momentum (beta=0.95)
2. Orthogonalize via 5 Newton-Schulz iterations using quintic polynomials
3. Scale by 0.2 * sqrt(max(m,n)) to match AdamW's update RMS

The Newton-Schulz iteration approximates the polar decomposition (nearest orthogonal matrix) in O(5 matrix multiplications), running entirely in bf16 on tensor cores. The result need not be perfectly orthogonal -- approximate forms work fine in practice.

Muon stores only one momentum buffer (50% less optimizer state than AdamW) and scales particularly well at larger batch sizes, where its orthogonalized updates remain high-quality even as gradient noise decreases.

SinkGD: Stateless Gradient Normalization

SinkGD (Scetbon et al., 2025) applies the Sinkhorn algorithm to gradients:

1. For L=5 iterations:
2. Normalize each row to unit L2 norm
3. Normalize each column to unit L2 norm
4. Scale by alpha * lr (alpha=0.05)

This is completely stateless -- no momentum, no second moments, no buffers. The alternating normalization produces a doubly-balanced gradient that automatically adapts the update scale per row and column. At O(L * m * n) element-wise operations per step, it is cheaper than Muon's matrix multiplications but still slower than Adam's element-wise operations due to the 5 sequential passes.

In our experiments, SinkGD trails AdamW by 0.036 at batch=32 but achieves competitive results at larger batch sizes (SinkGD-8: 2.8242 vs Adafactor-8: 2.8260). Its zero-memory-overhead property makes it attractive for memory-bound training at scale.

Note: the SinkGD implementation used here is unoptimized (5 iterations, no compile support). The examples/tiny_experiments/sinkgd/ project contains a more optimized, work-in-progress implementation with torch.compile support, stochastic rounding, and additional experimentation options. Testing there has shown that a single Sinkhorn iteration produces nearly identical results to 5, which combined with compilation makes SinkGD's per-step cost comparable to standard optimizers.

---

6. Discussion

Our conclusions are broadly aligned with those of Marek et al.

Keep the batch size small

The small-batch (batch=32, 16K tokens/step) results consistently match or beat the gradient-accumulation results (batch=256, 131K tokens/step) for AdamW, Adafactor, and SinkGD. For example, AdamW achieves 2.7392 at batch=32 vs 2.7549 at batch=256 -- the 8x larger batch actually hurts by 0.016 despite seeing the same total tokens. Fewer optimization steps means fewer chances to update, and the cleaner gradients from larger batches do not compensate.

The practical recommendation: tune for the smallest batch size that maximizes throughput (tokens/second) on your hardware. On a single GPU, this is typically the largest batch that keeps the GPU compute-bound without spilling to gradient accumulation. Gradient accumulation should only be used when needed to save inter-device communication bandwidth in distributed training.

The exception is Muon, which benefits from larger batches (2.6778 at batch=32 vs 2.6930 at batch=256 -- only 0.015 degradation from 8x fewer steps). Muon's orthogonalized updates extract more value from cleaner gradients, so larger effective batches are less wasteful.

Adaptive optimizers are interchangeable at small batch sizes

AdamW, FG Adam, FG Adafactor, and HF Adafactor produce eval losses within 0.009 of each other (2.739-2.748). Prior experience suggesting Adafactor and AdamW are close to equivalent at small batch sizes is confirmed. The factored second-moment approximation in Adafactor loses almost nothing at this scale.

Given this near-equivalence, Adafactor offers the best overall tradeoff when memory is a consideration. It matches AdamW quality while storing only row and column factors instead of full moment matrices -- virtually zero overhead for large weight matrices. At scale, this difference matters: AdamW's optimizer state can triple the parameter memory footprint, while Adafactor's is negligible.

SGD is viable but not practical

Both SGD variants train stably and converge, confirming Marek et al.'s core claim. However, the eval loss gap of ~0.26 versus AdamW is substantial -- roughly the same as the gap between 1 epoch and 0.5 epochs of AdamW training. At this scale, adaptive methods provide a meaningful quality improvement that SGD does not recover.

We also tested SGD at batch=1 (512 tokens/step, 1.15M steps). It trains successfully, achieving 3.0242 eval loss -- only 0.030 worse than batch=32 SGD (2.9940) despite 32x smaller batches and 32x more optimization steps. This confirms Marek et al.'s demonstration that SGD is viable even at batch size 1. However, throughput drops from 275K tok/s (batch=32) to 116K tok/s (batch=1), a 2.4x slowdown from GPU underutilization -- the hardware cannot be kept busy with a single sequence. This makes batch=1 training primarily of theoretical interest rather than practical value.

Nesterov momentum surprisingly provides no benefit (and marginally hurts: 3.0175 vs 2.9940), suggesting that at 16K tokens/step the gradient noise dominates the momentum signal.

Beta2 scaling has marginal impact at moderate batch sizes

Marek et al. recommend scaling beta2 to maintain a constant half-life in tokens: scaled_beta2 = 0.999 ^ (tokens_per_step / base_batch_size). We tested this at two batch sizes:

Effective Batch	Scaled beta2	Default beta2	Scaled Eval	Default Eval	Delta
256 (ga=8)	0.992	0.999	~marginal improvement	--	small
1024 (ga=32)	0.970	0.999	2.8817	2.9711	0.089

At batch=256, the correction is small (0.992 vs 0.999) and the impact is marginal. At batch=1024, the correction is much larger (0.970 vs 0.999) and produces a meaningful 0.089 improvement in eval loss. This confirms Marek et al.'s recommendation: beta2 scaling becomes increasingly important as batch size grows. If you are training with large batches, scaling beta2 to maintain a constant token half-life is a free improvement.

Which optimizer should you use?

For maximum quality regardless of batch size: Muon is the clear winner, achieving the best eval loss in both the small-batch (2.6778) and grad8 (2.6930) experiments while using less memory than AdamW. The throughput penalty is meaningful (~25%) but justified by the convergence benefit.

For small-batch, single-GPU training with fast iteration: AdamW, FG Adam, or Adafactor are all excellent choices. They are 30% faster than Muon and the quality differences among them are negligible, so choose based on practical considerations -- AdamW for ecosystem compatibility, Adafactor for memory savings, FG Adam for bf16 training with stochastic rounding.

For memory-constrained large-model training: Optimizer state memory becomes the dominant factor at scale -- AdamW triples the parameter memory footprint, which can determine whether a model fits on available hardware. SinkGD and SGD add zero state memory, Adafactor is virtually zero, and Apollo adds a small low-rank overhead. SinkGD is the strongest stateless option (matching Adafactor quality with zero state); Apollo offers the best quality-to-memory tradeoff among low-state optimizers.

For pure bf16 training: Use an optimizer with stochastic rounding (FG Adam or FG Adafactor). Without it, bf16 weight updates are catastrophically lossy.

---

Available Configurations

forgather ls

Configurations are organized into four groups:

• amp/ -- Mixed precision (bf16 compute, fp32 weights), batch=32
• bfloat16/ -- Pure bf16 with stochastic rounding, batch=32
• grad8/ -- 8x gradient accumulation (effective batch=256)
• grad32/ -- 32x gradient accumulation (effective batch=1024), beta2 scaling test

Running Experiments

# Train with default settings (single GPU)
forgather -t amp/adamw.yaml train

# Specify GPU
forgather -t amp/fg_apollo.yaml train -d 3

# Override hyperparameters via CLI
forgather -t amp/fg_apollo.yaml train --apollo-lr 0.008 --apollo-rank 128

# Custom log name for comparison runs
forgather -t amp/fg_apollo.yaml train --log-name apollo_test_run

# View training logs
forgather logs summary --all --format one-line
forgather logs plot --loss-curves --compare run1/ run2/ --labels "Run 1" "Run 2"

Regenerating Plots

# Generate all plots (loss curves via forgather + summary charts via python)
./generate_all_plots.sh

# Summary charts only (bar charts, memory/speed comparison)
python generate_plots.py
python generate_plots.py --dpi 300  # higher resolution

References

1. Marek, M. et al. "Small Batch Size Training for Language Models: When Vanilla SGD Works, and Why Gradient Accumulation Is Wasteful." arXiv:2507.07101, 2025.
2. Zhu, H. et al. "Apollo: SGD-like Memory, AdamW-level Performance." arXiv:2412.05270, 2024.
3. Jordan, K. "Muon: An optimizer for hidden layers in transformers." Blog post, 2024.
4. Moonshot AI. "Muon is Scalable for LLM Training." arXiv:2502.16982, 2025.
5. Scetbon, M. et al. "Gradient Multi-Normalization for Stateless and Scalable LLM Training." arXiv:2502.06742, 2025.
